Pressure Test Preloading Water Bag 0.6mm-1.5mm Large Water Bladder Tank

Place of Origin Shandong China
Brand Name Jawell
Certification ISET/ISO
Model Number JWRD060
Minimum Order Quantity 1
Price $1--$10000
Packaging Details Export wooden packaging, carton packaging
Delivery Time 7-35days
Payment Terms L/C, T/T
Supply Ability 2000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 1000L--1,000,000L Material PVC/TPU
Certification ISO/ISET Product Name Water Bag
Type Rectangular Size Customizable
Thickness 0.6mm-1.5mm Color Blue,Green,Gray,Yellow
Warranty 1 Year Application Industrial/ Agriculture
Adaptive Temperature(° C) -35-80
Highlight

Pressure Test Preloading Water Bag

,

Preloading Water Bag 0.6mm

,

1.5mm Large Water Bladder Tank

Leave a Message
Product Description

Pressure Test Preloading Water Bag Large Water Bladder Water Tank



PVC preloading weight pressure test water bag is a kind of soft and foldable container.
It is made of high strength PVC composites.The products have advantages of certain tensile strength,elasticity and air tighthness.

Pressure Test Preloading Water Bag / Water Bladder Tank can instead original sandbag and could be used many times which could reduce cost and speed up construction progress.The bridge preloading water bag could change the damage of labor because of traditional sandbag preloading, also could save the sand from repeated using.The outstanding advantage is improving the speed of construction period, and ensure the process of the project.



Volume in m³ Expansion dimension (L x W) in m Fully-loaded height in m Volume in m³ Expansion dimension (L x W) in m Fully-loaded height in m
100 10 * 7.2 1.4 800 25 * 16 2.0
200 14 * 9.0 1.6 900 25 * 17.2 2.1
300 17.6* 10 1.7 1000 26 * 17.5 2.2
400 19.2 * 11.6 1.8 2000 35 * 25 2.3
500 20 * 13.2 1.9 5000 50 * 40 2.5
600 20 * 15 2.0
700 23 * 15.3 2.0

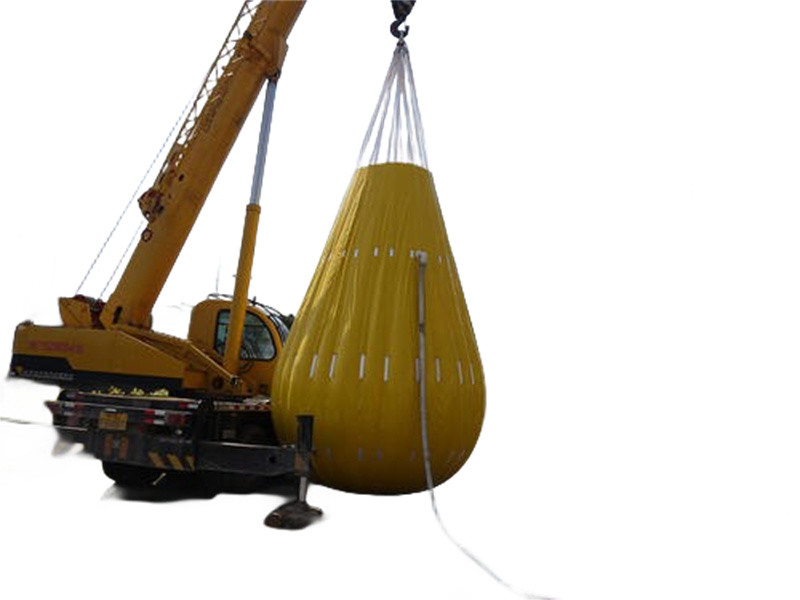

Pressure Test Preloading Water Bag 0.6mm-1.5mm Large Water Bladder Tank 0

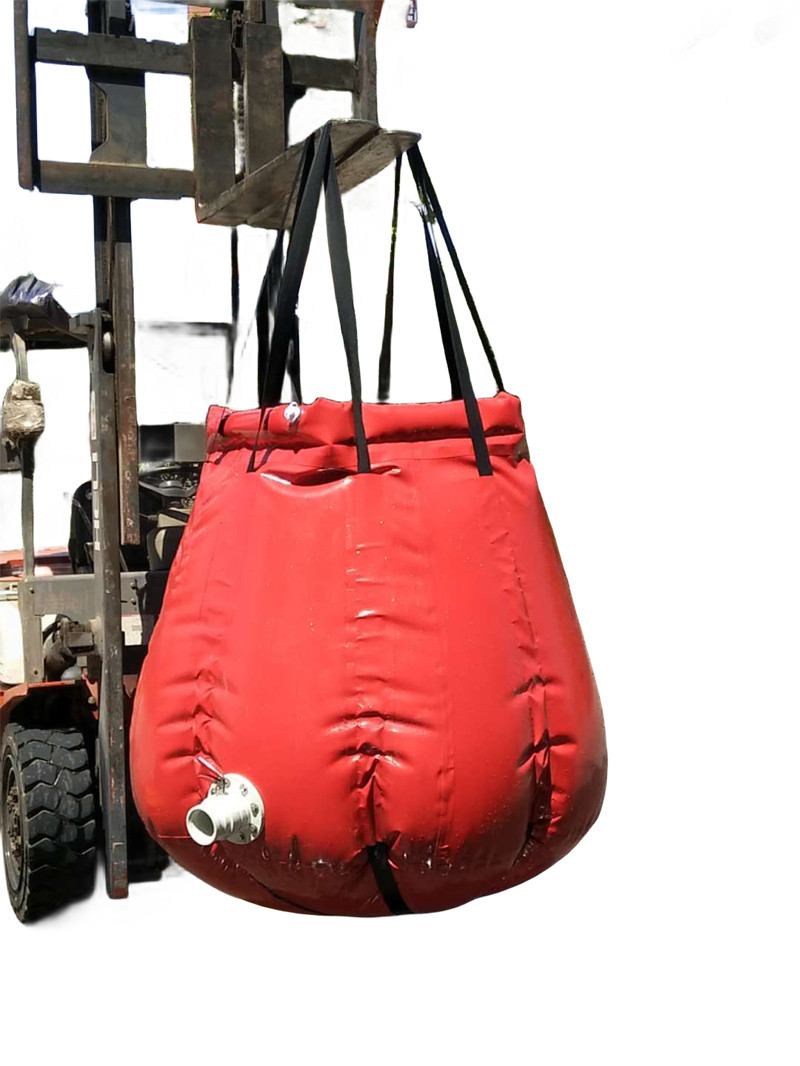

Pressure Test Preloading Water Bag 0.6mm-1.5mm Large Water Bladder Tank 1

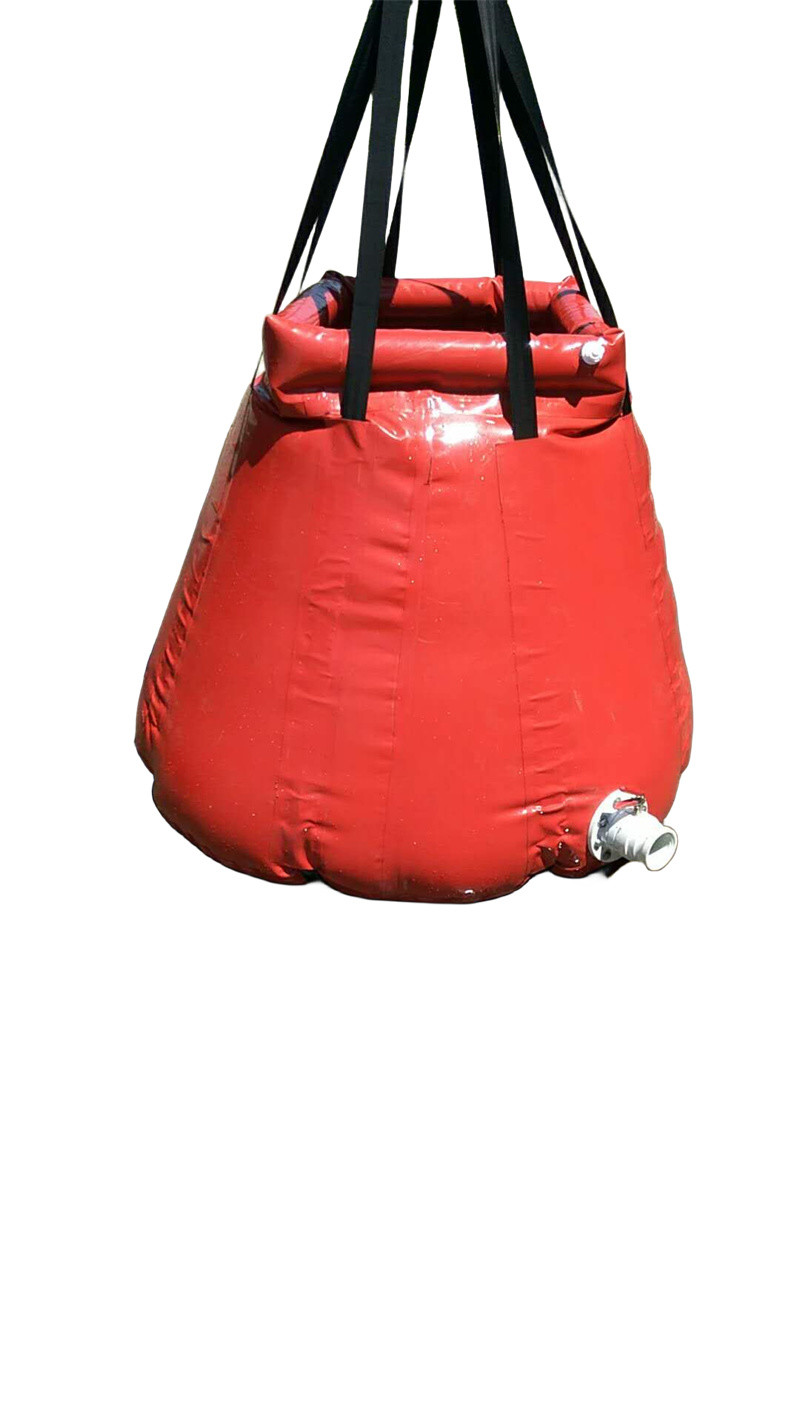

Pressure Test Preloading Water Bag 0.6mm-1.5mm Large Water Bladder Tank 2

Pressure Test Preloading Water Bag 0.6mm-1.5mm Large Water Bladder Tank 3



Advantages of preloading water bag


1.The method is simple and the labor intensity is low
2.Water bag can be used repeatedly with low cost.
3.Save space and freight based on small folding size.
4.The water bag could be used as storage water bladder for other water request on site,l water anywhere and anytime
5.The size and shape can be customized,from 100T to 5000T/pcs
6.Can be overlapping two bags, to meet the tonnage of the bridge preload
7.The lowest time is to to install,with high efficiency
8.The preloading water bags are fully furnished, with preloading water bag, water pump,turnaround water bag and so on.



Features and various colors of PVC and TPU material

1.Material:PVC/ TPU

2.Thickness:0.7-1.6mm

3.Temperature Resistance:-30-70℃

4.Tear Resistance:W:100.3-200N/cm; F:80.16-190N/cm

5.Adhesion: W:3.6-46N/cm; F:35.28-47N/cm

6.Color: red,blue,black,yellow,orange,white, etc.



FAQ

1. Q: What does your warranty cover?
A: 1 year quality warranty against manufacturing defects (material or workmanship).

worn out parts are not covered under our warranty.


2. Q: What is goods lead time?
A: As the order quantity, our delivery time is 7- 35days. But it will take a little longer if with heavy burden of production task.


3. Q: How can I get some samples?
A: We are honored to offer you samples. New clients are expected to pay for the courier cost, the small samples are free for you, this charge will be deducted from the payment for formal order.

4 .Q: How does your factory do regarding quality control?
A: Quality is priority! Every worker keeps the QC from the very beginning to the very end:
a. All raw material we used are passed the strength test.
b. Skillful workers care every detail in sewing, printing, stitching, packing process;
c. Quality control department specially responsible for quality checking in each process.

5. Q: Can your factory print my logo on the goods?
A: Yes, we can print the customers’ logo on the goods or their packing box.
We usually produce goods based on customer's samples or based on customers' picture, logo, sizes etc detail information design for customers.
